Mb Server Busways: Enabling Seamless Power Management In Data Centers

In Modern World, data is at the heart of everything what we do. For data centers, having a dependable and efficient power distribution system is critical. As a multinational companies or government organizations expand their IT infrastructure to keep up with increasing technology demands, traditional power distribution methods like cabling system often struggle to provide the flexibility and reliability needed. MB Server Busways, offering with a smart BMS solution for power management that helps keep data centers running smoothly. These features make them quick installation and service with minimizing the chances of electrical faults in challenging situations. Zero downtime, Hot swappable during live conditions and high uptime will enhance to meet modern day AI Hyper scalar Data centers. These modern solutions can handle high current loads with minimal power & voltage loss, ensuring they are most reliable even in tougher situations.

MB Server Busways of 1000V operational voltage, 250A – 1250A rated current capacity with the conductor material of Tinned Copper, ETP Grade, 99.9% pure & protected by the Aluminium enclosure material with IP54 protection. These Server Busway are modern vertical power distribution systems that make it easier to configure power to IT servers, storage units, and networking facilities in data centers. Unlike traditional cable systems that can be rigid and tricky to adjust, Server busways offer a straightforward plug-and-play and hot swappable in live condition options. Data center operators can quickly respond to changing power requirements without a hassle.

MB Server Busway is a top-notch power distribution solution specifically made for data centers and server room setups. It’s built for easy scalability, ensuring that server racks receive efficient and dependable continuous power distribution with minimal energy waste. Thanks to its compact, modular design and IP54 protection, along with meeting IEC 61439 standards, the MB Server Busway makes installation and maintenance a breeze while maximizing uptime and operational efficiency.

In today’s data-driven economy, data centers need to run smoothly, reliably, and securely. As the growing demand for uptime and performance in data centers, data center operators are increasingly turning to Building Management Systems (BMS) to keep an eye on, power monitoring and control, improve their essential infrastructure. BMS technology enables data centers to operate more intelligently by offering centralized, real-time insights into everything from power consumption and cooling efficiency to environmental controls and security measures.

This smart approach helps us to minimize downtime during installation and upgrades, while also enhancing safety & performance by reducing operators’ exposure to live electrical system and hot swappable features in live operations ensure the continuous operation without temporary shutdown. Additionally, these smart systems are great efficiency in dissipating heat, keeping operating temperatures in check and extending their lifespan for long time operations of facilities. With compliance to international Safety standards, they offer a high level of IP, dust and ingress protection and reliability, making them most ideal choice for the electrical power distribution challenges we are facing today.

Seamless Power Management in Data Centers

The Seamless Power management is most important for the modern data centers smooth functionality. MB Server Busways offer a flexible and scalable distribution system with smart BMS and IR sensors which can control/monitors power distribution to IT server racks, making it easier for data centers operators/maintenance team to adjust to changing power needs without major downtime during long run. This MB Server Busway unique features ensures a steady power supply and system reliability in data centers.

Wired & Wireless Power monitoring system in Data center

Seamless Power monitoring solutions play an important role in monitoring energy consumption and ensuring reliability in data centers. There are two main types of systems: wired and wireless, each with its own set of benefits.

Wired power monitoring systems are known for their reliability and cyber security, making them a great fit for environments that require stability. Wired system comes with less scalable and necessity for extensive cable will make them the high initial investment and maintenance cost.

Wireless power monitoring systems offer great flexibility with cable free configuration, which makes them perfect for data centers that helps us to reduce Noise and harmonic distortion to better extend than wired system. Wireless system comes with high scalability options with low upfront cost and with quick installation. The wireless systems require regular weekly biased check-ups for signal integrity, data transmission rates, signal interference and battery replacement in sensors.

Wired System is hence renowned for their enhanced stability and data integrity with better data protection from Cyber threats due to limited personal access. But you need to compromise on the flexibility of system while re-location will be a big issue. Wireless system comes with the modern technology with sensors will gives us reliability, flexibility and scalability at the lower investment. Wireless system ensures us the quick installation and delivers the enhanced performance at the critical environments. The decision of selecting either wired or wireless depends upon the data center organization, infrastructure and decision-making by management & data centre operators. So, for the Fault analysis, and data management, forecasting and report generation the wireless system gives us the extra advantages to modern data center.

Integrating BMS in Data Centers

For Seamless power management we need Building Management Systems (BMS), Data Center Infrastructure Management (DCIM), and Supervisory Control and Data Acquisition (SCADA) systems in modern data centers. By integrating Smart BMS in MB Server Busways, the data center operators/maintenance teams can easily monitor and control power distribution, cooling, environmental factors from a single source point. This smart BMS integration allows for real-time insights and automation, helping to optimize energy use and enhance operational efficiency for critical applications.

DCIM is a data center operator software that is a common access point of entire data centre facility which consist of sensors and hardware which monitors, measures and manage the IT Equipment’s and Supporting infrastructure of data center facilities to improve reliability and smooth operations.

How Smart BMS & IR window system Enables flawless Data Center Operations

• Live power monitoring and data collection (Temperature, power consumption on each individual racks)

• Smart Energy management and enhancing data center operational efficiency with better harmonic distortion control by 200% Neutral option in MB Server busway.

• Automation of entire data center data and operations at a common point.

• Improved easy access control for operators and security.

• Smart BMS system help prevent downtime & power failures by identifying and addressing issues early.

• By efficient monitoring system it will helps data centers to reduce voltage drop and lowering the carbon footprints with ROHS complaint.

• Reduces the power losses and maintenance & labor cost and increases the scalability at low infrastructure cost.

• These enhanced daily reports and data they can easily improves the decision-making during critical situations.

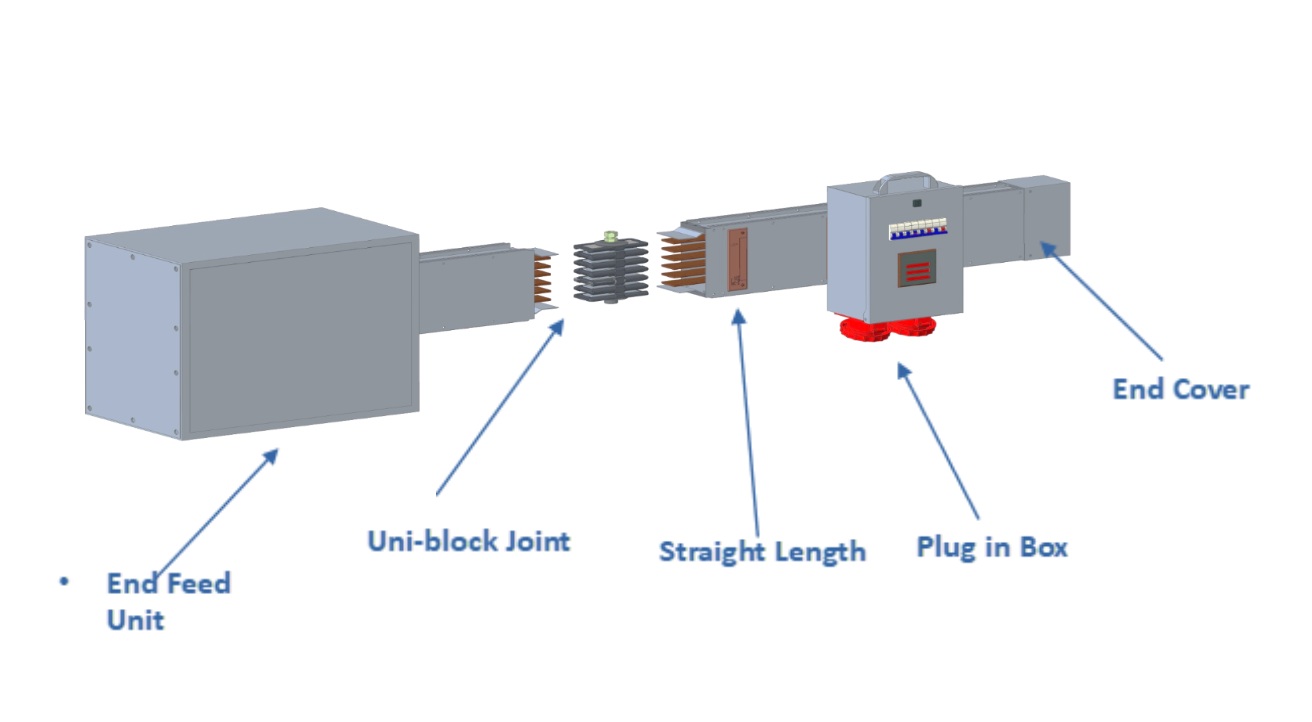

MB Server Busway Installation Procedures

1. Quality check, unpacking and material Inspection: Carefully unpack and inspect all materials received as per the purchase order issued by the end user without any physical damage while transportation, unloading and relocation of materials.
2. End Feed Box Installation: Install the end feed unit box with the power distribution unit at the designated height and location as per the approved data center electrical layout.
3. Mounting Brackets and straight length busway Installation:  Fixing the Mounting brackets, supports for the installation of the straight length of busway in the desired orientation to powering up the IT Racks.
4. Uni-block Joints and plug in Boxes Installation: Connect the uni-block joint with the end feed unit box fixed at one end and install plug in boxes at required intervals to the straight length of server busways and closure of uni-block joint with its end covers & unused plug-in tap off slots in straight length busway to ensure operators safety at the facilities.
5. End Cap Installation & Plug in the racks with server busways: Complete the installation by securing end caps to the busway and connect the plug-in box sockets with the IT Racks to power up the racks.
6.  Testing and Commissioning of the complete unit: After everything is installed, it’s time for testing. Conduct insulation and continuity tests to confirm that the system is installed correctly and safe to operate. This includes checking for any potential faults and making sure all connections are secure and ready for operation.
7.  Final Checks and Documentation handover formalities: Finally, do a thorough inspection to make sure everything aligns with the electrical layout approved by the end user. Document the installation process, noting any changes from the original plan, and share this documentation with the building management team for future reference and maintenance.

Power distribution diagrams for MB Server Busways provide a clear view of how the busway system is organized and connected within a data center. These diagrams usually feature:

• MB Server Busway Layout: This shows how the server busway is arranged both horizontally and vertically.
• Plug In Box Locations: These indicate where the power is delivered to the server racks.
• Power Feed Connections: This details how the main power source connects to the server busway.

Global Manufacturers of Server Busway/Track Busway

There are several leading manufacturers around the globe that focus on server busways and track busways, offering dependable and innovative power distribution options. Some of the key players include:

• Starline
• Eaton
• Vertiv

Key Features & Benefits of MB Server Busway

✅ Efficient Power Distribution- Eliminates excessive cabling, reducing clutter and energy losses.

✅ Modular & Scalable – Adapts to changing data center power requirements.

✅ Hot-Swappable Plug-in Units – Allows maintenance without downtime.

✅ Advanced Safety & Fault Protection – Shields against electrical hazards, ensuring reliability.

✅ Intelligent Power Monitoring – Provides granular insights into energy consumption.

✅ Space-Saving Design- Mounted overhead or along walls for better space utilization.

Compliance Standards for C&S MB Server Busways

C&S MB Server Busways follow the IEC 61439 (Part 1 & 6) & ROHS standards, which focus on low-voltage switchgear and control gear assemblies. These standards help ensure that the busways are safe, perform well, and are reliable.

BMS Integration with C&S MB Server Busways

Building Management Systems (BMS) work with C&S MB Server Busways to allow for centralized monitoring and control of power distribution. This collaboration enables real-time data collection, automated responses, and improved operational efficiency.

Major Protocols Used for BMS Integration with C&S MB Server Busways

When it comes to integrating Building Management Systems (BMS) with C&S MB Server Busways, two key protocols stand out:

1. Modbus: This is a popular protocol that allows devices to communicate over serial lines, making it easier for them to exchange data.
2. BACnet: This protocol is specifically created for building automation and control networks. It helps different systems work together seamlessly, promoting compatibility across various platforms.

MB Server Busways mark a significant step forward in power management for data centers. Their flexibility, reliability, and efficiency make them essential for modern data centers looking to boost performance and scalability. As the need for data processing and storage keeps rising, solutions like MB Server Busways will be key in ensuring smooth and effective power management.
