Motor Protection

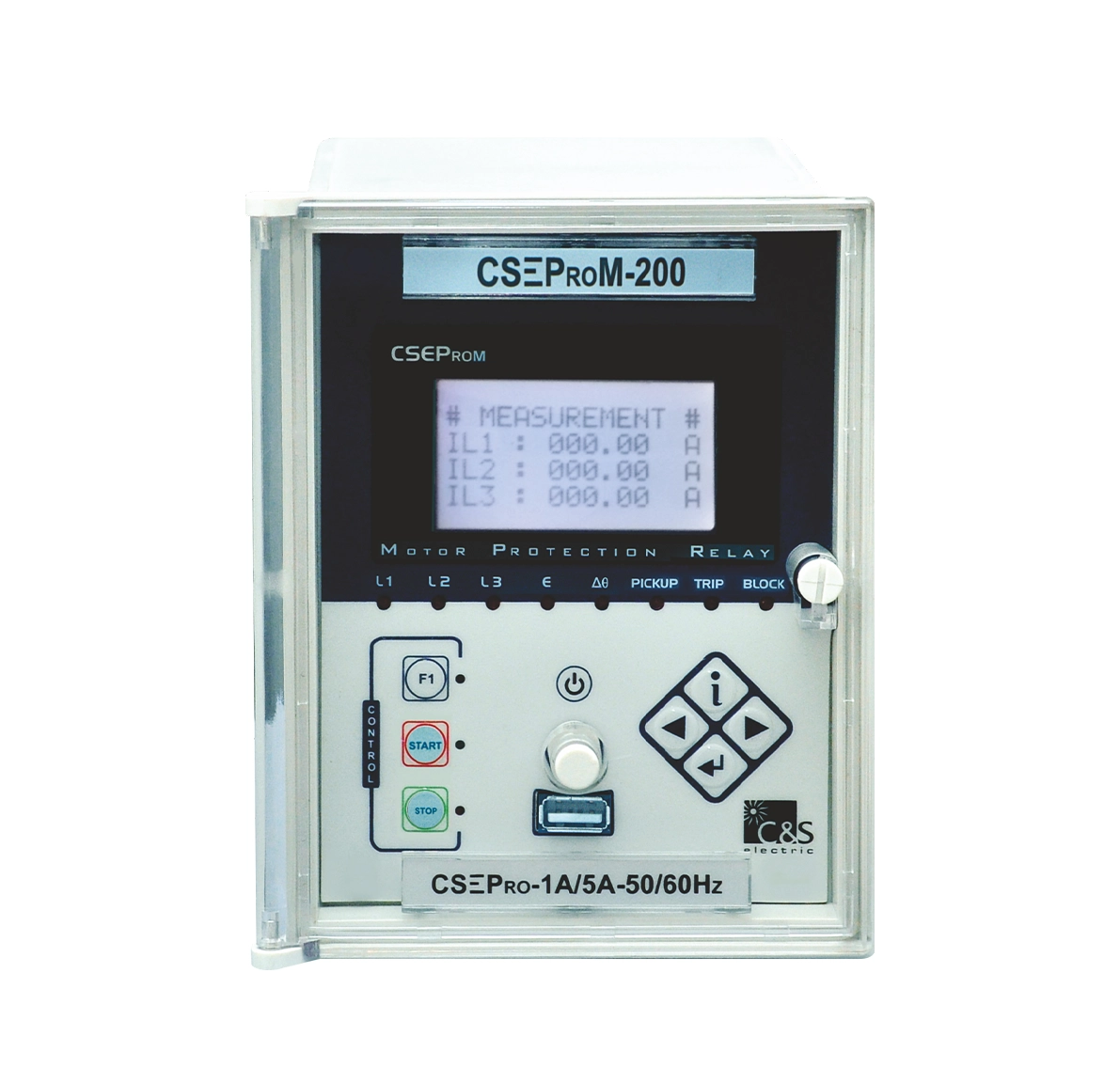

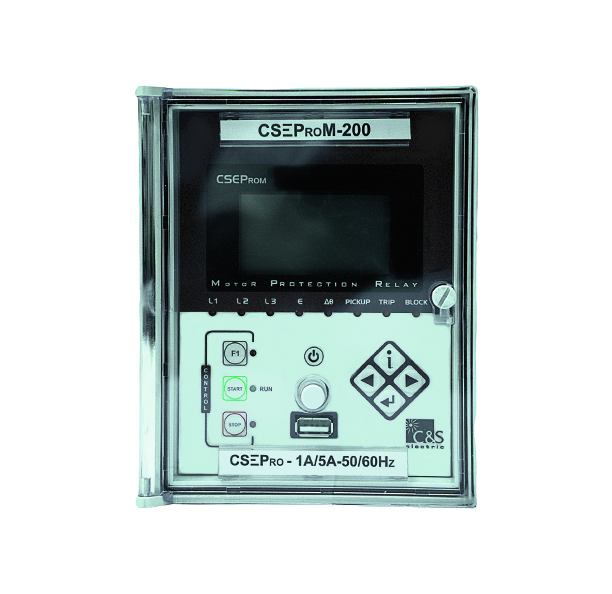

Intelligent Measuring & Protection Device for MV Motors : CSEPRO-M200

FEATURES

  • 1A & 5A Rated current (site selectable).

  • Draw-out Relay with Self CT shorting modular design
  • Thermal overload, over-current, locked rotor, unbalance, NPS, CBFP, Harmonic, TCS, Under current, short circuit, Phase loss etc.
  • Motor start / Stop record
  • Programmable input / Output
  • Maxi-meter with time stamp
  • 4 Current analogue input for phase & earth fault current
  • 6 DI / 6 DO
  • 8 LEDs at pickup & trip on fault + 3 LEDs with special function of 3 control keys.
  • 10 Fault, 100 Event records and Disturbance records
  • USB / RS-485 communication
  • 16×4 alphanumeric LCD

CSEPRO series offers a multi-functional, comprehensive smart protection solution for Feeder, Generator, Motor & Transformer segments. CSEPRO family of protective relays are advance numerical relays that provide multi-protection and monitoring with reliable and fast protection solutions in a single unit. In this family of CSEPRO series, the CSEPROM200 is an advanced motor protection solution that has fast, sensitive and secure protection for LV & MV motors, which are either operated via power contactors or power circuit breakers. CSEPROM200 also provides an automation solution of power control. It complies with IEC60870-5-103, IEC61850, Modbus protocol for high integration of protection & control.

APPLICATION:

The CSEPRO-M relay is the ideal answer to problems requiring more versatile or accurate protection for a motor than can be offered by standard thermal overload relay. It employs the latest micro controller techniques to provide the complete solution for the protection of medium & large sized and three phase motors with high inertia load in all type of ordinary contactors controlled or circuit breaker-controlled motor drives. It handles fault condition during motor start up, normal run, idling and cooling down at standstill in, for example pump, fan, mill, crusher applications.

The CSEPRO-M relay is the ideal answer to problems requiring more versatile or accurate protection for a motor than can be offered by standard thermal overload relay. It employs the latest micro controller techniques to provide the complete solution for the protection of medium & large sized and three phase motors with high inertia load in all type of ordinary contactors controlled or circuit breaker controlled motor drives. It handles fault condition during motor start up, normal run, idling and cooling down at standstill in, for example pump, fan, mill, crusher applications.

Uses:

  • Helps in extending life time of motor.
  • Helps in optimizing motor size.
  • Helps in planning maintenance work.
  • Protects the drive for mechanical damage.
