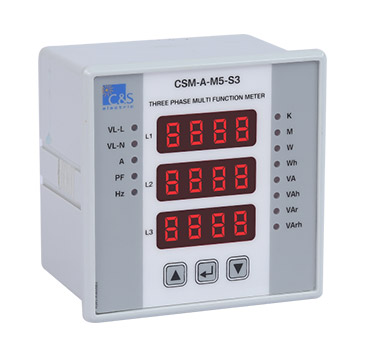

The CSM-A Series is a powerful Micro-controller based digital panel meters series with built-in intelligence that offers comprehensive 3 phase electrical instrumentation in a compact and rugged package.
Smart Metering Solution : CSM-A
TECHNICAL DETAILS
- System Network Connection: 3 Phase, 4 Wire / 3 Phase, 3 Wire / 1 Phase, 2 Wire
- Auxiliary Supply: 190 – 450V AC / 90 – 290V AC
- Voltage Measurement: 20 – 300V AC (L-N) / 35- 520V AC (L-L)
- Current Measurement: 50mA – 6.5A (Rated current 5A)
- Frequency Measurement: 45 – 65 Hz
FEATURES
- Accuracy Class: 1.0 (As per IEC 62053-21) for LED display
- True RMS Measurement
- 1 Sec Display update rate
- Compact Size of 96×96 mm
