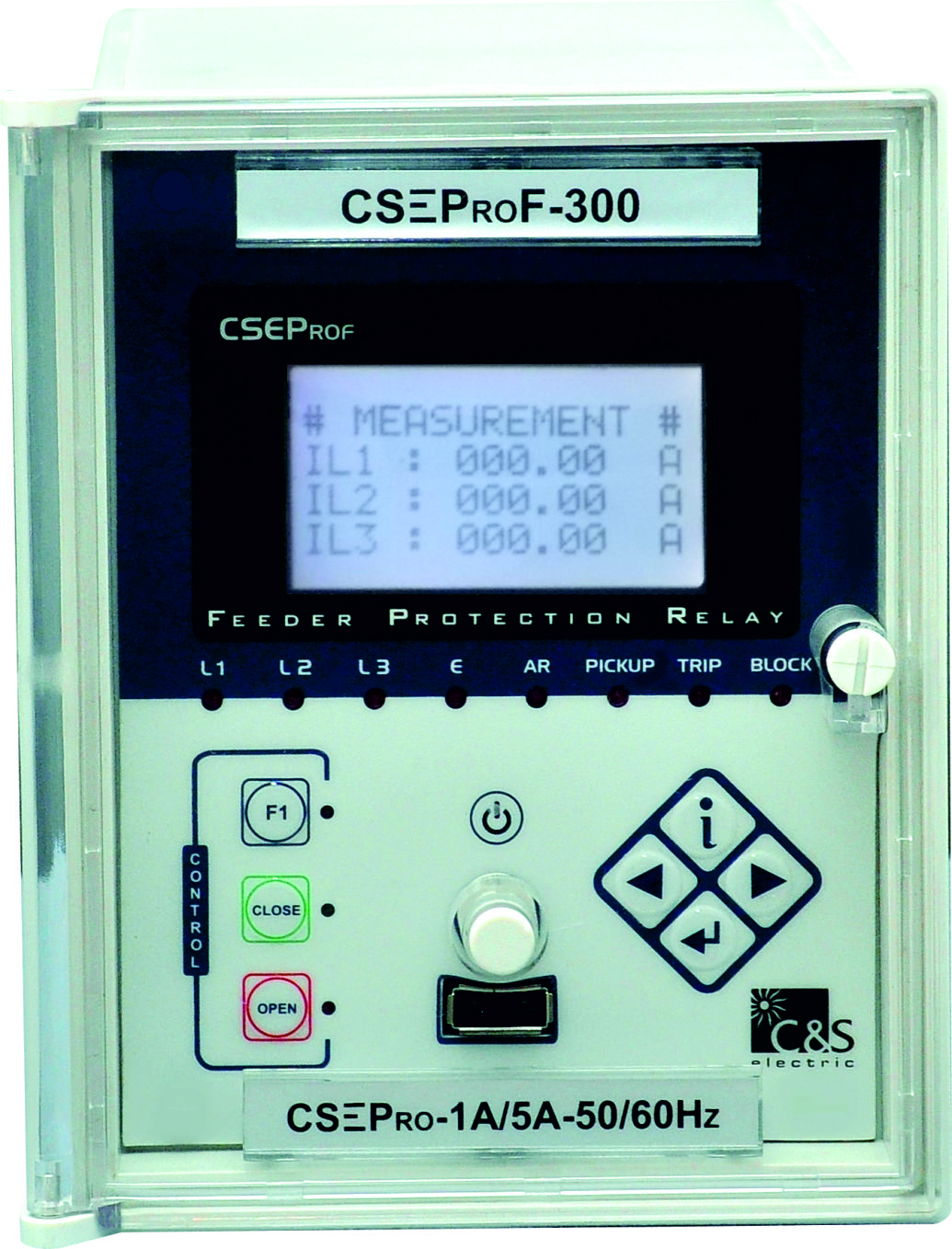

Intelligent Measuring & Protection Device 3OC + 1EF + REF + Voltage : CSEPRO-F300

FEATURES
  • 1A/5A Rated CT (Site selectable)
  • 50/60Hz Nominal Frequency (Site selectable)
  • Draw-out Relay with Self CT shorting modular design
  • Intelligent key for DI status & DO status
  • User configurable 6 Digital Input / 6 Digital Output
  • Last 10 Fault & 100 Event records with date and time stamp
  • 1200 cycles of Disturbance recording
  • IEC 61850-Edition-2 / IEC-103 / MODBUS communication protocol *
  • Interactive HMI with USB Plug & Play support
  • Wide Range of Aux Supply
  • Common configuration Software-CSELIVELINK
  • Relays are equipped with self-supervision function
  • Star & Delta configuration 63.5/110V

CSEPRO series offers a multi-functional comprehensive smart protection solution for Feeder, Generator, Motor & Transformer segment.

CSEPRO family of protective relays are advance numerical relays that provide multi protection and monitoring with reliable and fast protection solutions in a single unit. In this family of CSEPRO series, the CSEPRO-F300 is an advanced feeder protection solution which has fast, sensitive and secure protection for feeder faults.

CSEPRO-F300 also provides an automation solution of power control. It complies with IEC 60870-5-103, Modbus protocol for high integration of protection & control.

CSEPRO-F300 offers following model-based features to cover requirements of the wide range of users.

APPLICATION:

The CSEPRO-F relay has been designed for controlling, protecting and monitoring industrial, utility distribution networks and substations. They can also be used as part of a protection scheme for feeders, transformers and generators.

  • CSEPRO-F 300 transformer protection relay enhanced the transformer reliability.
  • By detecting and isolating faults quickly, it extends the transformer’s lifespan.
  • Provides optimal performance through monitoring, proactive maintenance and regulatory compliance.
  • Protects expensive and critical equipment from damage, prevents fires and minimises power outages.
  • These relays ensure optimal performance through monitoring, proactive maintenance and regulatory compliance.
