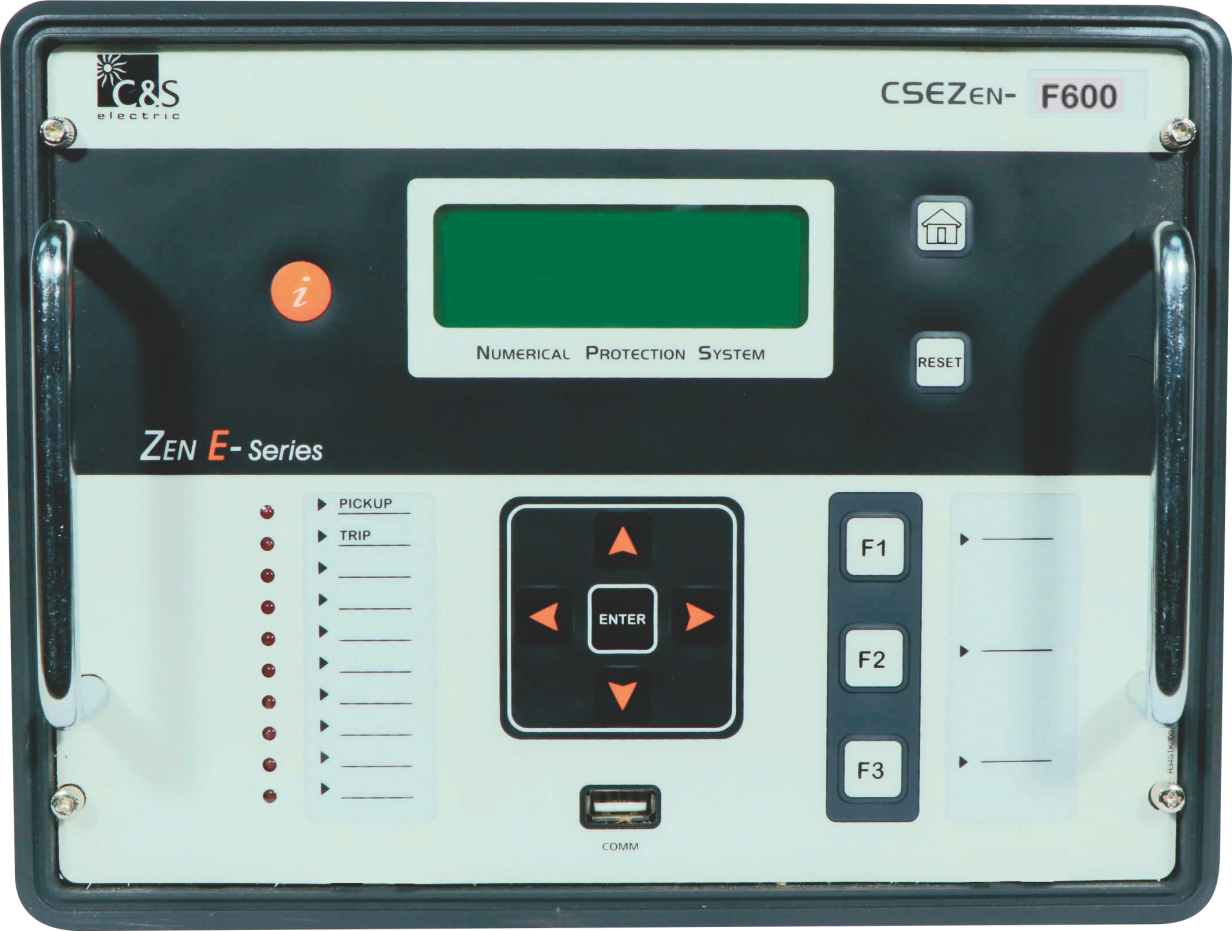

Advance Feeder Protection & Monitoring IED : CSEZEN-F600

FEATURES
  • 1A/5A Rated CT (Site selectable)
  • 50/60Hz Nominal Frequency (Site selectable)
  • Draw-out Relay with Self CT shorting modular design
  • 4 Analog CT & 4 Analog PT
  • Synchro check facility
  • User configurable 16 Digital Input / 16 Digital Output *
  • 20 Fault & 500 Event records with date and time stamp
  • 1200 cycles of Disturbance recording
  • IEC 61850-Edition-2 / IEC-103 / MODBUS communication protocol *
  • Interactive HMI with USB Plug & Play support
  • Wide Range of Aux Supply
  • Common configuration Software-Designer suite M12
  • Relays are equipped with self-supervision function
  • Password protection for all settings *

CSEZEN series offers a multi-functional comprehensive smart protection solution for Feeder, Generator, Motor & Transformer segment.

CSEZEN family of protective relays are advance numerical relays that provide multi protection and monitoring with reliable and fast protection solution in a single unit.

In this family of CSEZEN series, the CSEZEN-F is an advanced Feeder protection relay designed for controlling, protecting and monitoring industrial installations, public distribution networks and substations. CSEZEN-F also provides an automation solution of power control. It complies with IEC 60870-5-103, IEC 61850, Modbus protocol for high integration of protection & control. CSEZEN-F offers following features in a compact & smart flush mounting enclosure.

APPLICATION:

CSEZEN-F relay will cover wide range of protection functions required for feeder segment. It can be used as part of protection scheme for transformers and generator transformers. CSEZEN-F relays can also provide back-up protection for HV and EHV transmission systems.

  • Negative Phase Sequence Over Current (46)
  • Broken Conductor Detection (46BC)
  • Auto Recloser (79)
  • Cold Load Pickup
  • Thermal Overload (49)
  • Phase Under/Over Voltage (27/59)
  • Residual Over Voltagel Voltage Unbalance (59N/47)
  • Voltage Controlled Over Current (51 V)
  • Three Phase UnderCurrent (37P)
  • Restricted Earth (64N)
  • Three Phase Directional Over Current (67P)
  • Earth Fault Directional Over Current (67N)
  • Power Protection (32)
  • Under/Over Frequency (81 U/O)
  • Rate of Change of Frequency (81 R)
  • Synchro check(25)
  • Harmonic Blocking
