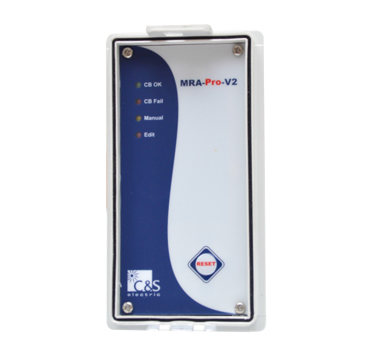

Continuous Trip Circuit Supervision of both pre closing and post closing conditions in circuit breaker
Detection and Alarm of trip circuit supply failure and circuit breaker tripping mechanis failure such as loss of voltage, trip circuit connection, contact degeneration in wires,contacts and coils
Single Phase CB monitoring
Flush mounting enclosure
2 Output contacts
Operation delay to avoid spurious signals for instance on circuit breaker operations
Test function for Self test facilitates routine maintenance
Auto / Manual operation mode
Lockout Relay CLR
FEATURES
Electro-mechanical Design
The Lockout Relay CLR series are equipped with following:
Suitable for Tripping, Signaling in Protection & Control System
Consistent and repeat Accuracy
High resistance to Shock & Vibration
Flexible user friendly standardized contacts arrangement
Hand Reset flag indication
Compact Panel mounting case
High Speed with positive operation

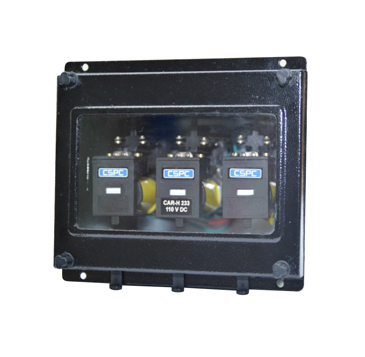

CAR-Voltage Operated Relays
FEATURES
The CAR type auxiliary relay are voltage operated relays, mainly used in control and alarm circuits.
CAR series of relay are available in two basic models CAR-H and CAR-S. Auxiliary relay CAR-H is provided with hand reset contacts. CAR-S is self-reset type.
CAR series of relay are available in two elements & 3 elements model. Each element can be energized separately
The CAR series of relays are used in various applications such as:
Switching functions in protection and control circuits
