Conforms to IEC 61439 (1&6) & IS 8623 (1&2)

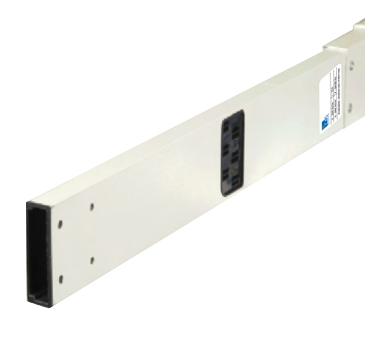

Lighting Trunking (LB) – LV

Compliance of standard	IEC61439 (1&6)
Conductor Material & Ratings	Copper 25A, 40A
Busbar Configuration	2P : ( 1-Phase + 100% Neutral ) + Integral Ground Earth 4P : ( 3-Phase + 100% Neutral )+ Integral Ground Earth 6P : ( 3-Phase + 100% Neutral + 1-Phase + 100% Neutral ) + Integral Ground Earth 8P : ( 3-Phase + 100% Neutral + 3Phase + 100% Neutral ) + Integral Ground Earth
Rated Operational Voltage (Ue)	500V
Enclosure Material	Aluminium
Degree of Protection	IP 55
Plug-in Box	Upto 16A

C&S offers Lighting Trunking – LB series under “Metabar Range” for Low Voltage Power Busbar Solutions for 25A & 40A.

Application

Lighting trunking finds application in Power Distribution solutions replacing cables for-

Horizontal distribution

Above Applications will find Power Distribution solutions in following segments

Process plants, manufacturing industries & Industrial Offices
Commercial, residential real estate & Hospitals
Infrastructure establishment – Airports, Metros, Railways, Tunnels, Ports
Shopping centres, Exhibition centres & Warehouses
IT Parks, Data centres solutions

The Power Busbar Division of C&S has been continuously addressing the market needs over past four decades in various applications. With the combination of Supreme range, vast experience in R&D, engineering, state of art manufacturing plants, in-house testing facilities, and strong project management is aimed to provide one stop solution for all your Power Busbar needs.

Low weight & compact Aluminium Housing saves space & Installation Time.
Low smoke Halogen free flame retardant material makes it environment friendly & Reliable product.
Ease of Installation between straight length, flexible elbows, end feed units, center feed Units etc. can be carried out by just push fit and screw tightening.
Standardization of elements has made it easy for designing layout, selection and ordering.
Flexibility in power distribution with range of Plug-in Boxes, simplifies complex Installations.
Aesthetics
Conformity to International standards.
