|Compliance of standard||IEC61439 (1&6)|
|Conductor Material & Ratings||
|Rated Operational Voltage (Ue)||1000V|
|Rated Impulse Withstand Voltage (Uimp)||12kV (1.2/50 µSec)|
|Degree of Protection||IP 54|
|Plug-in Box||32A – 400A|

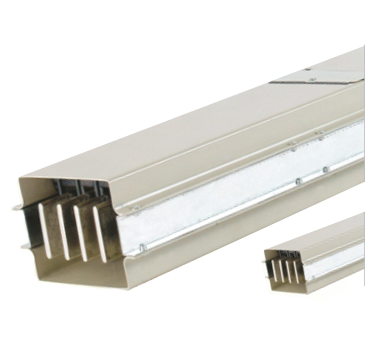

Compact Air Bustrunking (CB) – LV
C&S Offers Compact Air Bustrunking- CB series under “Metabar Range” for Low Voltage Power Busbar Solutions from 125A – 1250A.
Compact Air Bustrunking finds application in Power Distribution Solutions replacing cables between:
- Rising Mains or Vertical distribution
- Horizontal distribution
Above Applications will find Power Distribution solutions in following segments
- Process plants, manufacturing industries & Industrial Buildings
- Commercial, residential real estate & Hospitals
- Infrastructure establishment – Airports, Metros, Railways, Tunnels, Ports
- Shopping centres, Exhibition centres & Warehouses,
- IT Parks, Data centres solutions.
The Power Busbar Division of C&S has been continuously addressing the market needs over past four decades in various applications. With the acquisition of Eta-com having specialization in Cast Resin Insulated Busway, C&S Power busbar division has emerged as “Global Power Busbar Specialist.”
With the combination of Supreme range, vast experience in R&D, engineering, state of art manufacturing plants, in-house testing facilities, and strong project management is aimed to provide one stop solution for all your Power Busbar needs.
- Flexibility in power distribution with Plug In points at every 500mm on either side of the resulting in reduced Installation cost and ease in upgradation by adding or relocating the Plug In boxes as per load locations.
- Wide range of Plug In boxes with provisions for Circuit breakers, Fuses, Switch Fuse Units and customized monitoring and metering makes it suitable for any application needs of distribution.
- Safety Features- Compliance of resistance to Fire propagation & Building Penetration, Compliance to severe seismic conditions, Interlocks in Plug applications & Ingress Protection.
- Reliability in terms of Mechanical strengths, Electromagnetic Compatibility, higher product life.
- Saving starts with Installation time, ease in relocation, replacement, addition and reusability.
- Aesthetical appearance after Installation.
- Conformity to International standards.
