Primary Distribution Switchgear are used in power plants and heavy industries. The CSA 12/ CSA 24 insulated switchgear are equipped with draw-out vacuum circuit breaker with increased mechanical & electrical life. C&S 12kV &24kV Switchgear are based on modular construction which helps in easy installation in small installation area and make them easy to operate.

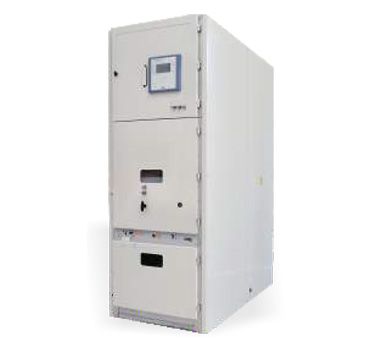

12kV & 24kV Air Insulated Switchgear with Draw-out Vaccum Circuit Breaker
Technical Details
12kV Air Insulated Switchgear with Draw-Out Vaccum Circuit Breaker
- Rated Voltage: 12/17.5kV
- Rated Current: 630A ~ 3150A
- Rated Short –Time Current: 25 for 3s/ 40 for 3s
24kV Air Insulated Switchgear with Draw-Out Vaccum Circuit Breaker
- Rated Voltage: 24kV
- Rated Current: 630A ~ 1600A
- Rated Short –Time Current: 25 for 3s
FEATURES
- Modular construction
- Extensible
- Operated exclusively from the front
- Internal arc resistant
- Equipped with vacuum circuit breaker with increased mechanical and electrical life
- Racking-In and racking-out of MV breaker behind arcproof
doors
- Small Installation Area
- Easy to Operate
- Reduced maintenance & increased reliability
- Several Optional equipment available
