Used in Power Generating stations and industrial applications for lower capacity generator (2.5 MW) connections, interconnections between switchgear to transformer and switchgear to switchgear.

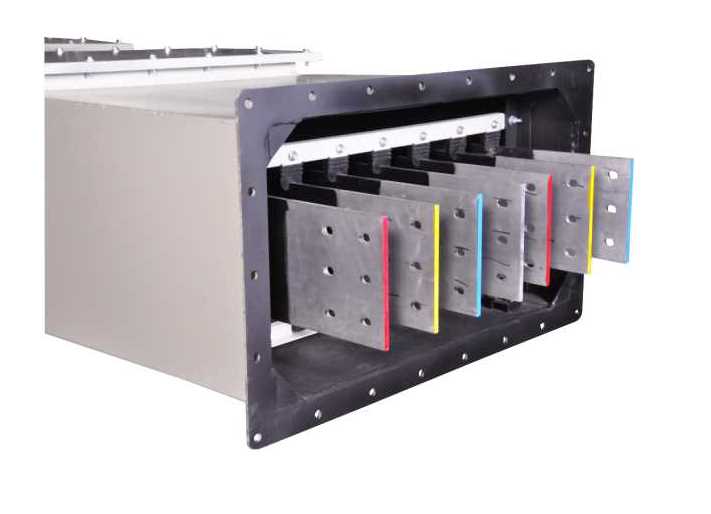

Non-Segregated Phase Busducts
- 630A to 6300A, 415V to 1100V
- 3Phase , 415V, 3 Wire.4 Wire bus bars housed in a common metallic enclosure of aluminium
- Busbar material Alumnium alloy/ Copper in the form of flat / channels
- Busbars are supported on SMC insulators
- Design for degree of protection of IP55 for outdoor and IP54 for indoor busducts
